Design Features:

Fabricated Bonneted Slide Gate Valves feature lightweight construction for low pressure systems with displacement pocket and tapered body for column-cutting material handling service. Bonnet can have access panel for cleanout.

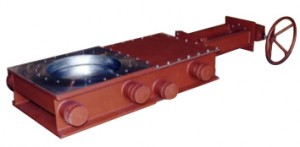

Bonneted Slide Gate Valves (H-500-B) Specifications

SIZE RANGE:
Through 48″

TEMPERATURE RANGE:
up to 1200°F

SEATING:
Metal seat

MATERIALS:
Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.

ABRASIVE SERVICE:
Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
